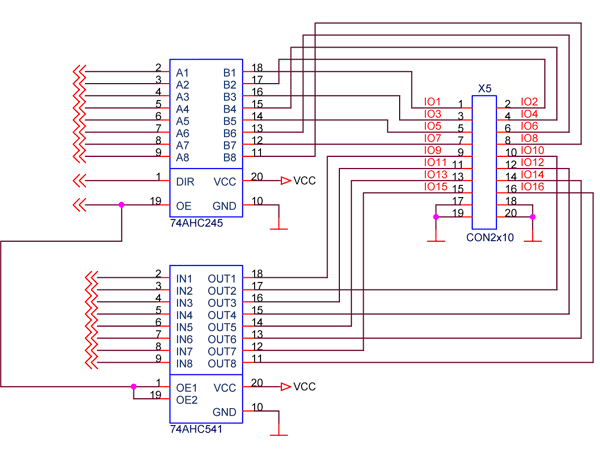

Expansion Interface Circuit
The expansion interface can be extended per customer request.
More specific information is available on datasheet for the 74AHC541 from Philips Semiconductors.

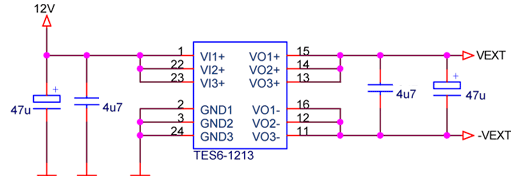

External Power Supply
External logic provides a potential-controlled power supply.
Output Voltage: 15 VDC
Output Current: 400 mA
More specific information is available on datasheet for the TES6-1213 from Traco Electronic AG.
