* Channel 0 correspondes to Offset 1. Channel 1 to Offset 2 and so forth.

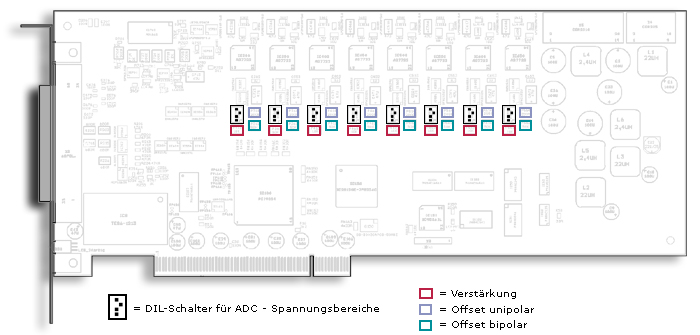

DIL-Switch for Specific Settings:
Table: DIL Configuration
| bipolar | ||
|---|---|---|
Voltage Range | DIL Switch | Dipcode |
± 10 V |
| 9 |
± 5 V |
| 5 |
±1.25 V |
| 1 |
| unipolar | ||
0 ... 10 V |
| 10 |
0 ... 5V |
| 6 |
0 ... 5V |
| 2 |
