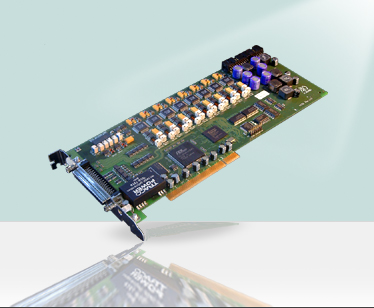

Analog/digital Highend Data-Acquisition Card


 zum Inhalt








with 16 bits and genuine 8 channels


FEATURES:
APPLICATIONS:



Brückner & Jarosch
Ingenieurgesellschaft mbH
service@xadio.de Contact
Telefon: 0361/212400 +49 (0)361/212400
Order form
Downloads
  • 8 independent channels (no multiplexing), each 16 bits with filter
  • Each channel operates with the full sampling rate of 195 kHz
  • 14 digital opto-decoupled inputs
  • 10 digital opto-decoupled outputs
  • Automatic collection of all the data in one block including a time stamp
  • Supports 2 encoder inputs (incremental encoder) (32 bit)
  • 1 timer (32 bit)
  • 2 analog outputs (18 bit) from -10V to +10V
  • Angle-layer based measuring systems
  • Automation
  • High resolution test systems
